Product Features and Details

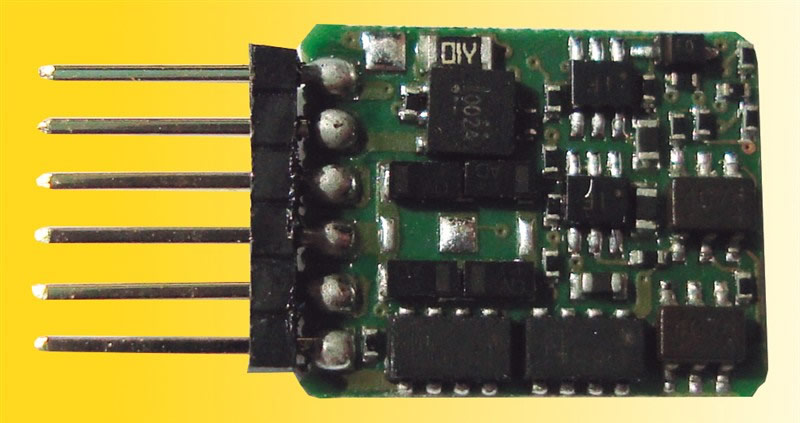

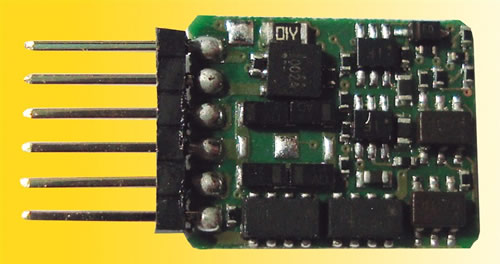

RailCom®-enabled miniature multi-protocol decoder for DC, DCC (2 and 4 digit addresses) and Märklin-Motorola (old / new) with automatic format detection. Adjustable minimum and maximum speeds and a freely programmable speed steps (28 steps), adjustable high-frequency load control, also suitable for coreless motors, with 14, 28 + 128 speed steps, plus. Shunting. Motor current 0.5A continuous, 0.8A max. Two directional light output with additional functions: function mapping (freely programmable function key assignment), dimming, flashing. The total capacity of the function outputs is 300mA. All outputs are overload protected, the decoder is additionally protected against over-temperature. The decoder has a SUSI interface and a terminal for energy storage, in each case on the solder pads. Decoder as 5240, but with 6-pin plug according to NEM 651 S dimensions incl. Plug approx 16 x 9.5 x 2.6 mm.
