Product Features and Details
In M.U. (Multiple Unit) Operation between Aachen and Montzen

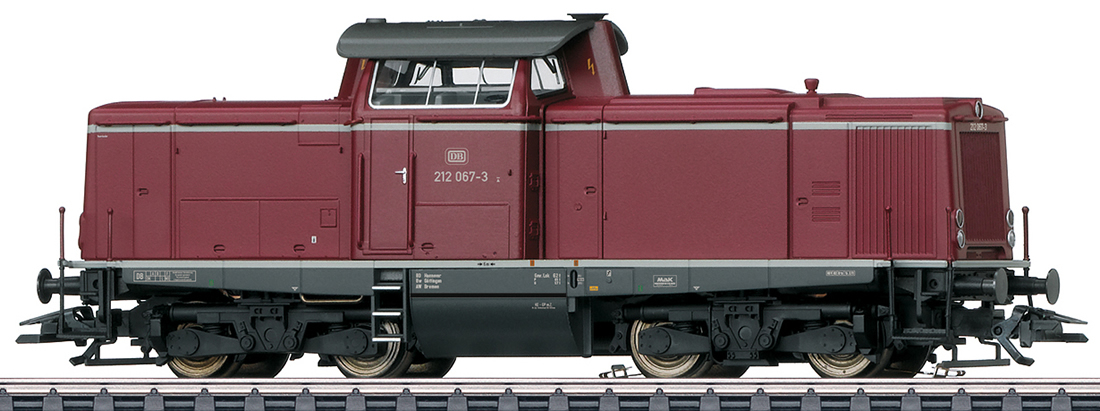

Prototype: German Federal Railroad (DB) class 212 diesel locomotive. Crimson basic paint scheme. Locomotive road number 212 067-3. The locomotive looks as it did in the Mid-Seventies.
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. All 4 axles powered by cardan shafts. Traction tires. Triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends of the locomotive, then the double "A" light function is on at both ends. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has detailed buffer beams. Brake hoses that can be installed on the locomotive are included. Length over the buffers 14.1 cm / 5-9/16".
Highlights
- mfx+/DCC digital decoder included.
- Extensive sound functions.
This model can be found in a DC version in the Trix H0 assortment under item number 22826.
Features
- Metal frame and mostly locomotive body.
- mfx+ digital decoder
- DCC decoder
- Built-in sound effects circuit.
- Triple headlights and two red marker lights that change over with the direction of travel.
- Marklin close couplers in standard pocket with pivot point.
- Era 4
|
Control Unit |
Mobile Station |
Mobile Station 2 |
Central Station 1/2 |
Central Station 3/2* |
Headlight(s) |
* |
* |
* |
* |
* |
Conductor's Whistle |
* |
* |
* |
* |
* |
Diesel locomotive op. sounds |
* |
* |
* |
* |
* |
High Pitch Horn |
* |
* |
* |
* |
* |
Direct control |
* |
* |
* |
* |
* |
Sound of squealing brakes off |
|
* |
* |
* |
* |
Headlight(s): Cab2 End |
|
* |
* |
* |
* |
Low Pitch Horn |
|
* |
* |
* |
* |
Headlight(s): Cab1 End |
|
* |
* |
* |
* |
Doors Closing |
|
|
* |
* |
* |
Letting off Air |
|
|
* |
* |
* |
Brake Compressor |
|
|
* |
* |
* |
Blower motors |
|
|
* |
* |
* |
Replenishing fuel |
|
|
* |
* |
* |
Rail Joints |
|
|
* |
* |
* |
Switching maneuver |
|
|
|
|
* |
"Switcher Double ""A"" Light" |
|
|
|
|
* |
Sanding |
|
|
|
|
* |
Sound of Couplers Engaging |
|
|
|
|
* |
Station Announcements |
|
|
|
|
* |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
