Product Features and Details
*EXCELLENT CONDITION, LIKE NEW. THIS ITEM IS 2ND HAND AND SOLD AS IS*

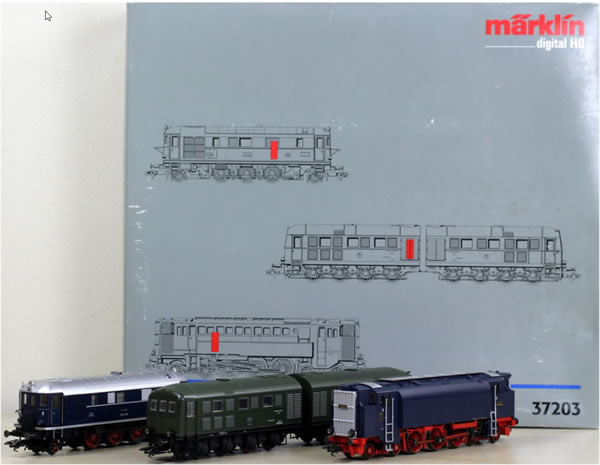

Special three-locomotive set commemorating the 140th anniversary of Märklin and the development of German diesel-powered locomotives. Set was issued in 1999 as a limited-edition set for Insider members. It consists of one DRG class V120, one V188 and one V140.
Model: DRG V 120 Diesel Pneumatic Locomotive: Unique Color and Road Number - Not Available Separately From Märklin. Digital High Efficiency 5-Pole Motor and Electronics,
Lights Reverse with Direction. 4-6-4 Wheel Arrangement Six Wheels Driven - Two Traction Tires Adjustable Acceleration / Deceleration Delay and Maximum Speed.
Prototype: In 1924 the DR planned to produce a Diesel loco with a pneumatic transmission system. Under the guidance of the DR a prototype was built by Maschinenfabrik Esslingen and MAN, which was similar in construction and power rating to the BR 78 steam locomotives. A special 2-cylinder compressor was driven by a 6-cylinder MAN Diesel motor with transmission and valve gear similar to that of steam engines. Compressed air heated to 350º Centigrade was fed into the cylinders. From 1929 this locomotive was used in the Stuttgart area for several years
Model: V140 diesel is a unique blue livery and Road Number - Not Available Separately From Märklin. Digital High Efficiency 5-Pole Motor and Electronics Lights Reverse with Direction (Red Tail Lights).
2-6-2 Wheel Arrangement,Six Wheels Driven - Two Traction Tires. Adjustable Acceleration / Deceleration Delay and Maximum Speed.
Prototype: This was a basically new locomotive and was placed into service in July of 1935 after just an eight month building period. The V 140 was the first large diesel locomotive with hydraulic power transmission. Karuss-Maffei, the German State Railroad Central Office in Munich, and the firms of BBC, MAN, and Voith all participated in the development and production of this locomotive. The diesel motor developed 1,400 horsepower at 700 rpm. The Voith fluid transmission with a torque converter and two couplings transmitted this power to the jackshaft. This locomotive was used until 1953 in the Frankfurt area; since 1970 it has been in the German Museum in Munich.
Model: German V 188 articulated diesel electric. Unique Color / No Road Number - Not Available Separately From Märklin. Two 5-Pole Motors with Digital High Efficiency Electronics LED Lights Reverse with Direction (Red Tail Lights). Two Motors - Four Axles Driven - Eight Traction Tires Adjustable Acceleration / Deceleration Delay and Maximum Speed.
Prototype: After several years of experiments with the V 120 and V 140 prototypes as well as the regular use of small locomotives and powered railcars, a concept for the mass production of large diesel locomotives had still not been developed in Germany by the end of the 1930s. The increased tension of the political situation increased the necessity, however, for an effective railroad logistics plan that did not rely on the extended infrastructure of electric and steam operations. Twelve robust diesel electric locomotives were ordered initially from Krupp, probably on the basis of American experiments with this type of motive power. These units were supposed to be designed for doubleheading and were in fact used only in pairs. This resulted in the designation as the class V 188 - corresponding to the total output of 1,880 horsepower.
Originally, these locomotives were each equipped with a 940 horsepower, 6 cylinder MAN motor that powered electric traction motors in each axle from a generator. Two locomotives together formed a colossus of 147 metric tons that reached speeds up to 75 km/h (47 mph). The enormous tractive effort of 37 metric tons was the same as the E 94 electric locomotive built at the same time, that required more than twice the power.
Three of the double locomotives survived the war; two of them were overhauled in 1952 and were later modernized with components from the newly developed V 200 diesel hydraulic locomotive. They were equipped with new Maybach 12 cylinder motors of each 1,100 horsepower and were used for almost another 20 years in southern Germany. The only DB diesel electric locomotive was retired from service as the class 288 - the decision had been made in the meantime to use diesel hydraulic locomotive
