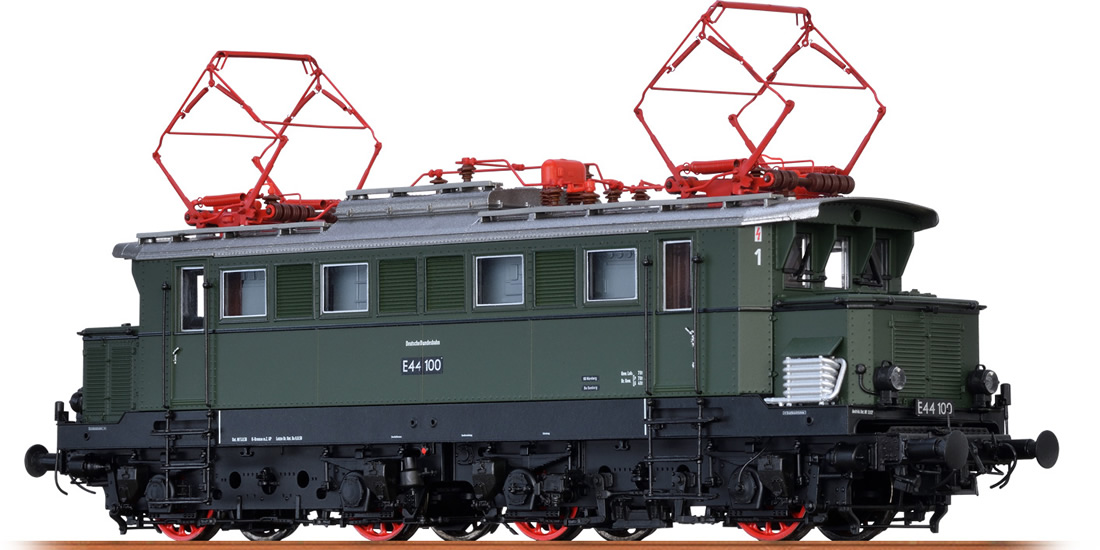

    Brawa German Electric Locomotive BR E44 of the DB (DC Analog Basic Plus)


    Brawa 43404

    Price: $309.90

    System Scale Country Era Railway Dimensions
    DC HO Germany III DB 175.7mm
    Brawa 43404 - German Electric Locomotive BR E44 of the DB (DC Analog Basic Plus)

    Product Features and Details
    HO Scale DC Era III

    • Pantograph type SBS 10;
    • Main switch type R 618
    • With 8 sand boxes
    • In analog mode the 3rd front light can be switched on or off with a switch, in digital mode with a function key
    • Indusi and extended roof
    • Extra mounted handrails in low-material thickness
    • Three-point support
    • True-to-epoch lightning
    • Finely detailed chassis
    • Finest paintwork and printing
    • Free standing roof lines
    • Illuminated driver's cab
    • Functioning metal pantographs (mechanical)
    • Prepared for sound or with built-in sound
    • LED lighting
    • NEM-standard close-coupling
    • Illuminated machine room
    • Metal wheels and frame
    • Prototypical multipart roof-fittings
    • Many extra mounted parts
    • Reproduction of the different pantograph and main switch types



    Digital Version EXTRA:

    • Incl. Energy storage (buffers sound, motor and light)
    • Extensive light functions: shunting lights, drivers cabin lighting, tail lights separately switchable
    • Optimized lighting control for drive and shunting mode
    • Flicker-free light, due to stabilized and through a separate capacitor buffered 5 V power supply
    • True-to-original sound
    • Noiseless 16-bit Sound with up to 8 independent channels thanks to newest sound technology and excellent sound characteristics
    • Optimal motor and load control for perfect running characteristics
    • Applicable in all established digital systems (DCC, Motorola, SX1 und SX2)
    • Enclosed Locomotive card in the AC-Version

    Overview of technical functions

    Analog Basic+ =Digital Basic+ ~Digital Extra =Digital Extra ~
    Driving function
    Light change1)
    Tail lights separately switchable1)2)
    Driver cabin lighting1)2)
    Long-distance headlights
    Shunting lights
    Light setting programmable for analogue operation
    Digital interfacePluX22PluX22PluX22PluX22
    Decoder
    Sound
    Energy Storage
    Additional information
    • Subsequent conversion from
      analog to digital via PluX22
      interface possible
    • Compatible with and programmable
      in all common digital
      systems (DCC, Motorola, SX1
      and SX2)
    • Optimised light control for driving and shunting modes
    • Latest sound technology and excellent sound quality
    • Compatible with and programmable in all common digital systems
      (DCC, Motorola, SX1 and SX2)
    • Improved motor and load control





    1) In analog mode functions are selectable via switch and in digital mode via function button

    2) Function only available in digital mode

    At the end of the 1920s, it became clear that Deutsche Reichsbahn Gesellschaft (DRG) would have to acquire new electric locomotives, among other things, to accelerate its goods traffic. The need to increase maximum speeds to at least 80 km/h could not be met with the most recently purchased E77 and E75 series since the standard drive technology by means of bars and additional trailing wheelsets did notallow for higher speeds. The good experiences from abroad and with the two Bavarian EG 1 with the Bo'Bo' two-bogie locomotives convinced the DRG to deviate from single-frame construction as well. The arrival of the world economic crisis in 1929, however, put a halt to this plan by interrupting the cost-intensive electrical expansion of the lines, thus eliminating the need for electric locomotives. The locomotive industry in Germany, however, feared falling behind current developments due to this pause in procurement. They therefore began developing a cheaper design at their own costs. Thus a prototype with the designation E44 70 was created at the Siemens-Schuckert Works (SSW) under the general management of Walter Reichel. This prototype later became the E44 001. SSW was able to integrate its experience with electric arcwelding from its production of components for electric generators into locomotive manufacturing, which led to significant savings in materials and manufacturing costs. The prototype's positive test results convinced DRG to further develop the new locomotive type into a universal locomotive. The result was Germany's first two-bogie electric locomotive produced in series, which can safely be categorised as the prototype forthe subsequently developed standard electric locomotive of Deutsche Bundesbahn (DB). Due to the war the delivery of the locomotives, which were registered for 90 km/h, stretched from 1933 into the postwar period, and Henschel only handed over the last one, a E44 187G, to DB on 29 November 1954. The predominant distribution to central and southern Germany led to the fact that approximately 100 locomotives remained in West Germany and around 50 in East Germany after the war. The most conspicuous design changes at DB were the lengthening of the roof shield for accident prevention and the Indusi (inductive traincontrol system) equipment. The last locomotives, however, remained in service until 1985. Of the original 187 locomotives, only 21 still exist today, partially as museum locomotives and as spare parts donors.

    • Road no.: E44 100
    • DC Analog Basic Plus Version
    • Ready for installation of digital Sound
