Product Features and Details

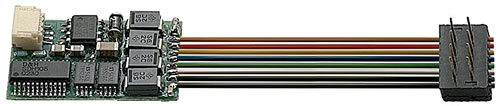

Receiver for all DC locomotives with a current draw up to 2,000 milliamps (motor 2,000 milliamps, lights 300 milliamps). Suitable for all locomotives with NEM 8-pin digital connector.
Can be used universally in Selectrix and DCC format
Automatic system and analog recognition
Same locomotive address in Selectrix and DCC operation
7 adjustable maximum speeds
4 adjustable motor impulse variations
Automatic load compensation
Connections for light and auxiliary functions
4-pin SUSI connector for additional functions in DCC operation
Short circuit protection for the motor outputs
Overload protection for the lights and auxiliary function outputs
Programming of additional settings by means of selection of the address "00"
In Selectrix operation:
31 speed steps; 111 addresses; Block operation with simple diodes; Braking operation with brake diodes
In DCC operation:
Manual speed step selection between 14/28 speed steps; Automatic switching to 128 speed steps; Addresses can be either 7 or 14 bits; Braking operation with direct current and "broadcast-mode" brake generators
